HX115 frame adopts the spraying process with an insulating effect on frame surface, effectively reducing the possibility of component damage caused by electric current.

Bullet Point

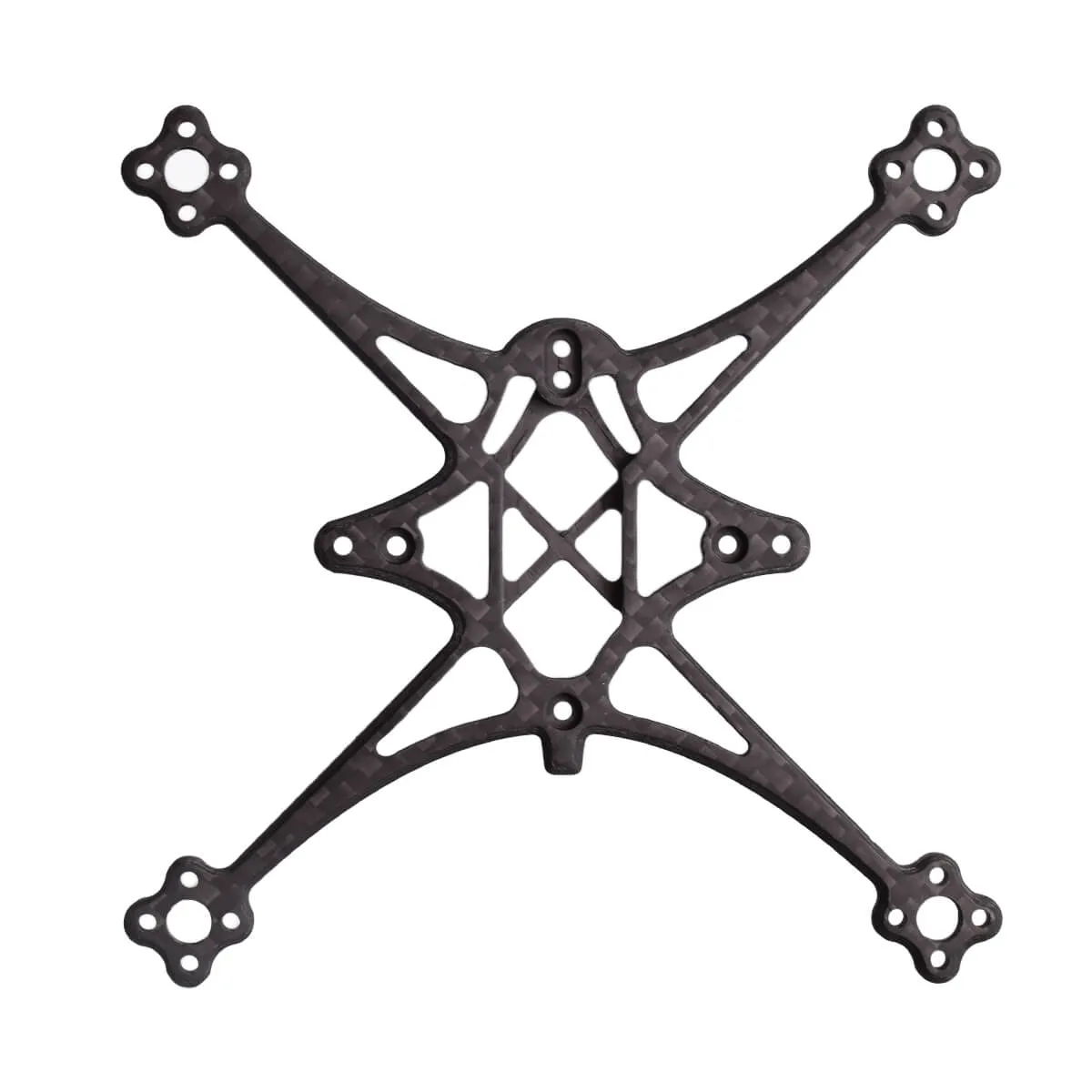

• Newly structure design, R0.5 chamfer, and 4mm thickness make HX115 T700 carbon unibody frame become ultimate durability and aesthetic while maintaining minimal weight
• Apply upgraded T700 carbon fiber material, stronger crashworthiness compared to the initial T300 frame.
• Package includes no-slip rubber pads, screws and battery cable tie for easier self-assembly

Specification

• Material: Carbon Fiber
• Diagonal motor distance: 115mm
• Thickness: 4mm
• Motor mounting hole: M2*4

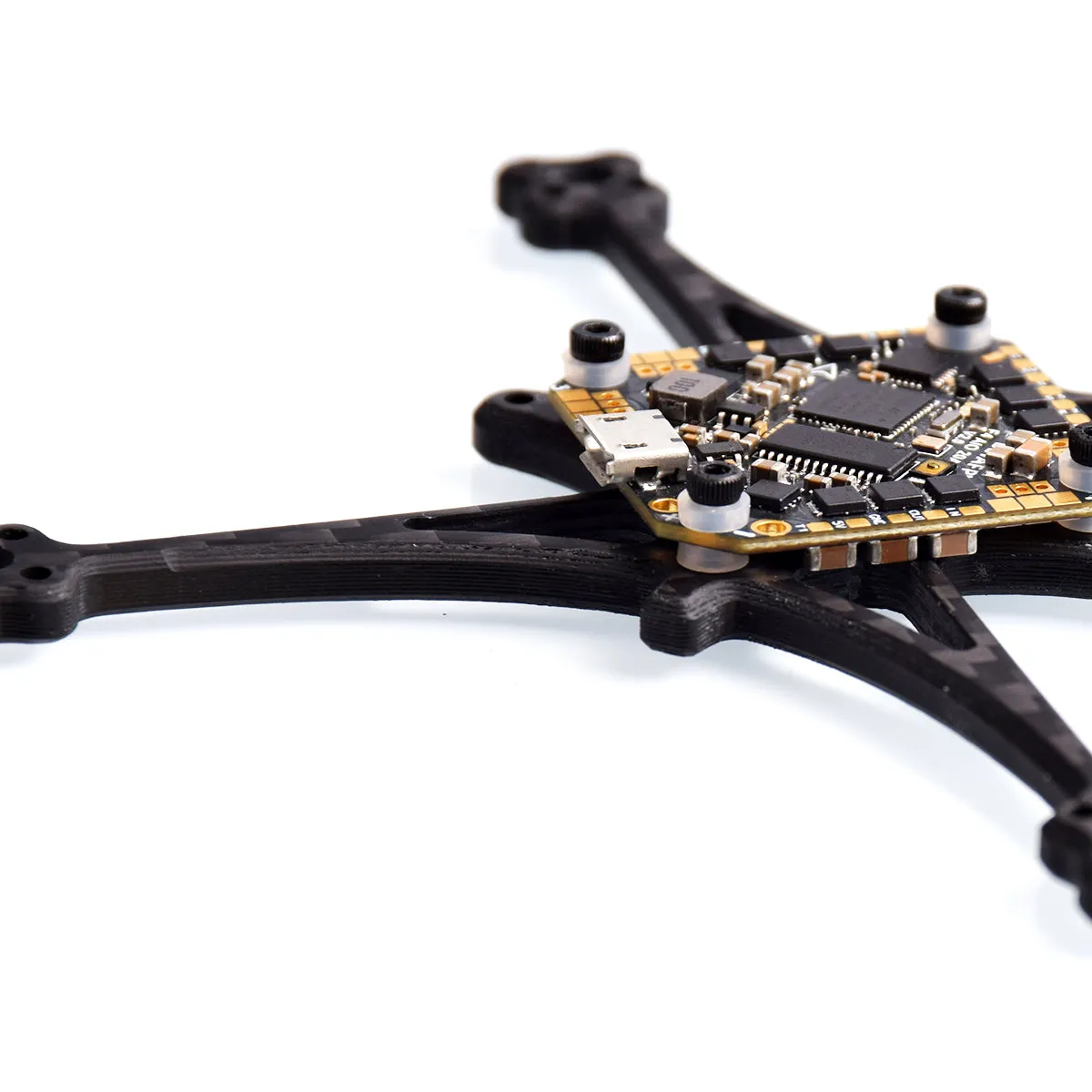

• FC mounting hole: 26.5mm x 26.5mm

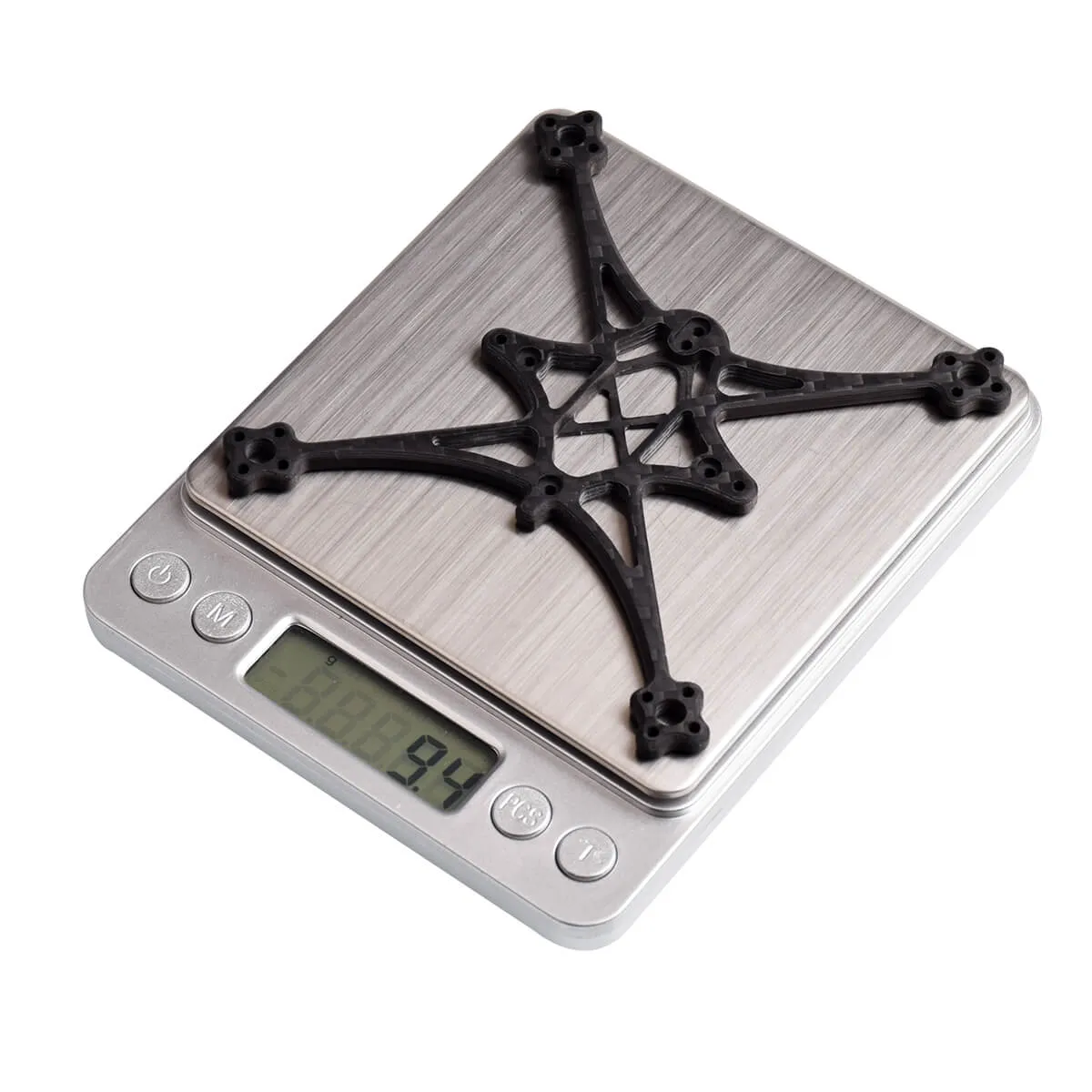

• Weight: 9.4g

Recommended Parts

• Propellers:  /
• Canopy:
• Motors:  /  /
• Batteries:  /
• FC&ESC:
• Drone:  /

Package

• 1 * HX115 Carbon Fiber Frame
• 1 * 150mm Battery Cable Tie
• 1 * No-Slip Rubber Pads
• 1 * Pack of Screws
• 1 * Ruber dampers
• 8 * HX115 aluminum column
