Name: Beta65X Whoop Quadcopter (2S)
SKU: 760821

Product Details ＋

Beta65X Whoop Quadcopter is discontinued now, but you can try the new pusher style X-series drone - .

BACK TO THE CLASSIC, BACK TO BETA65X!

Do you still remember your first classical brushless whoop-Beta65X? What happened to it later on? The new generation of Beta65X 2S whoop drone is ready with and 2pcs , providing you an insane flying experience. Use the and the stackable battery slot to cut down on the wind resistance, extending your flight time to 3:00-4:00 mins. Moreover, we provide the , so you can stay home, recording an HD video indoor.

Bullet Point

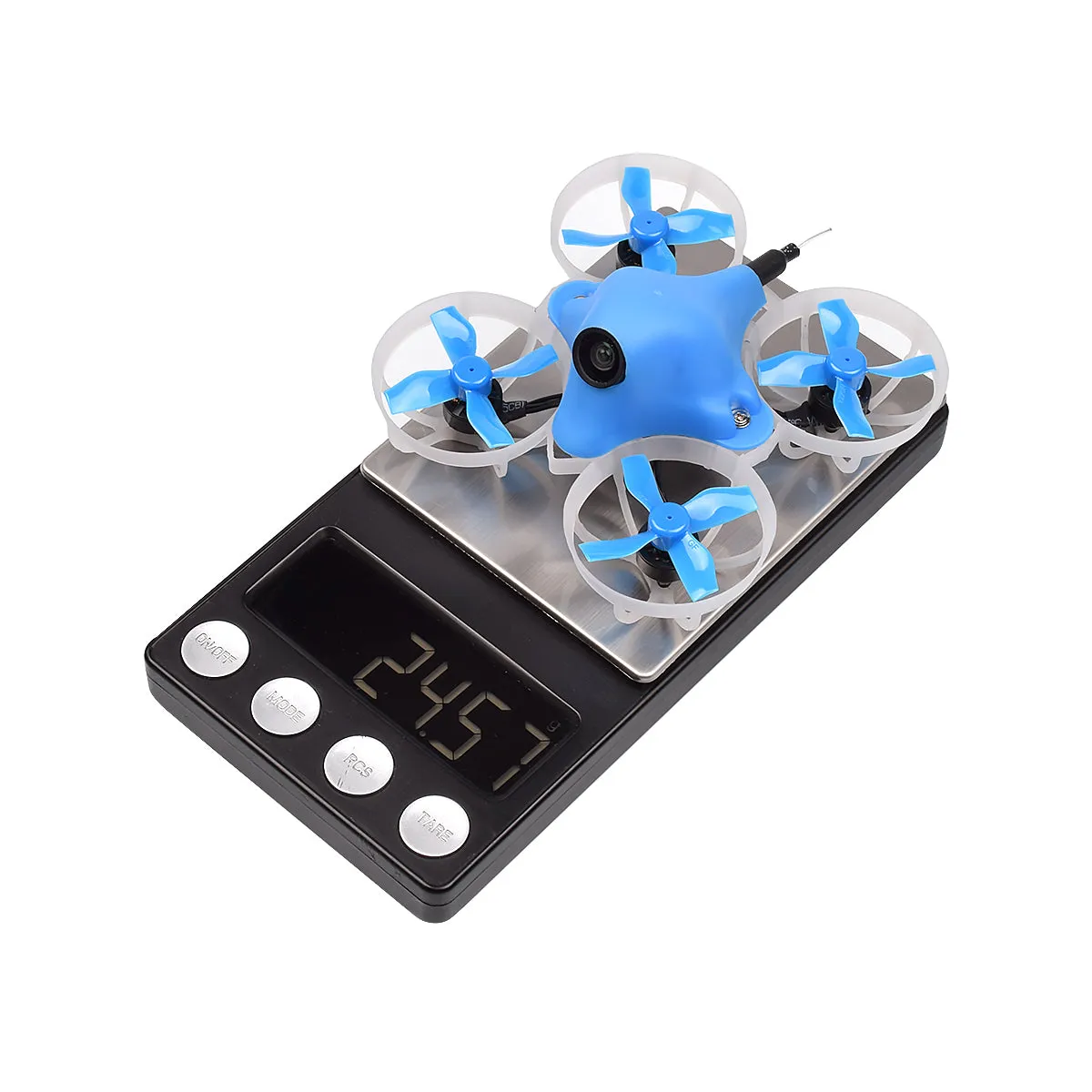

Small size and big power. This is what the Beta65X is! The total weight of 26g gives pilots a good balance of weight and nice punch on 2S battery.

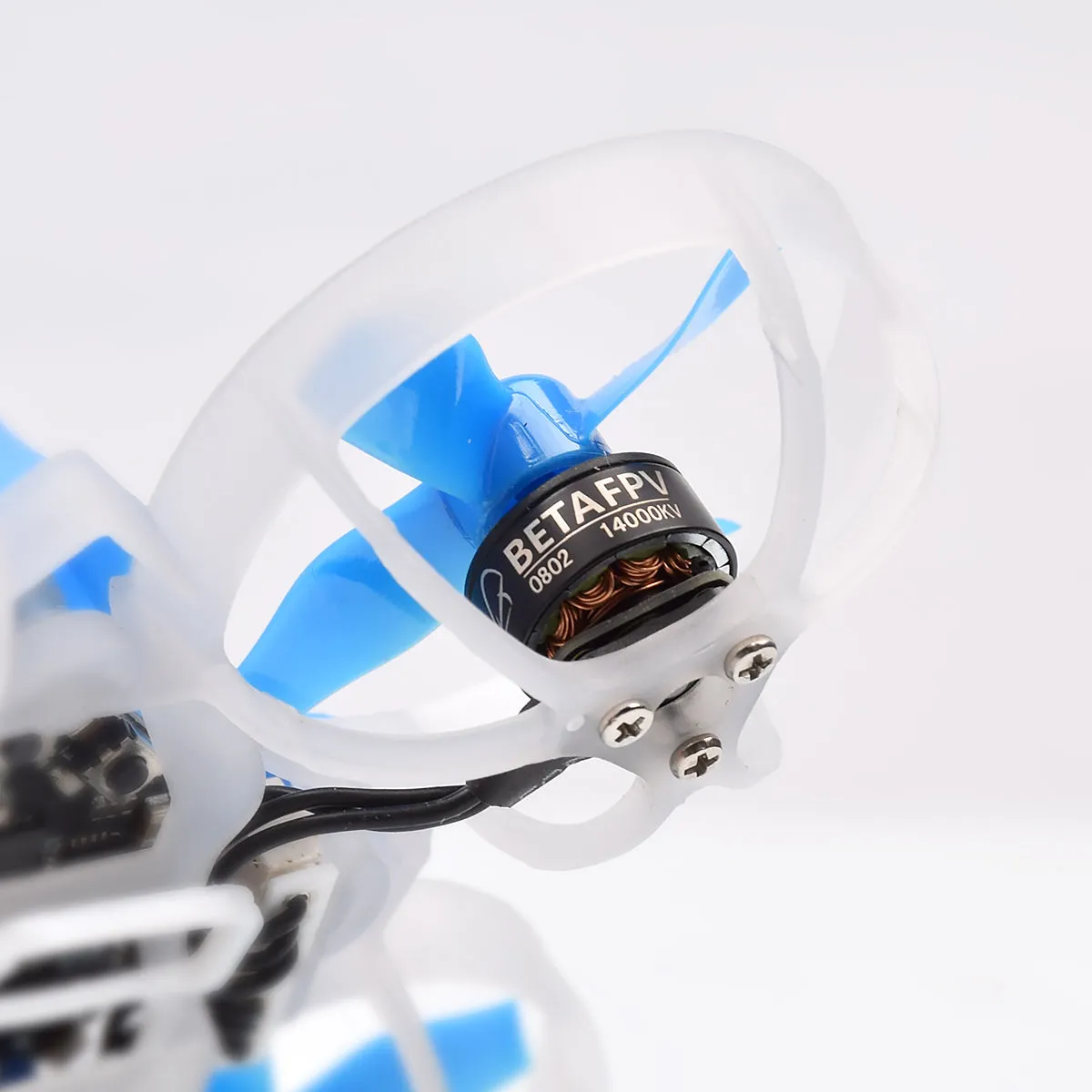

Customized with the lightest 0802 14000KV motors, give you extreme power no matter you fly indoor or outdoor.
Soldered with the BT2.0 connector, which can provide a stable and powerful continuous current so that you can extend the flight time to 3:00-4:00mins compared to the Beta65 Pro 2.

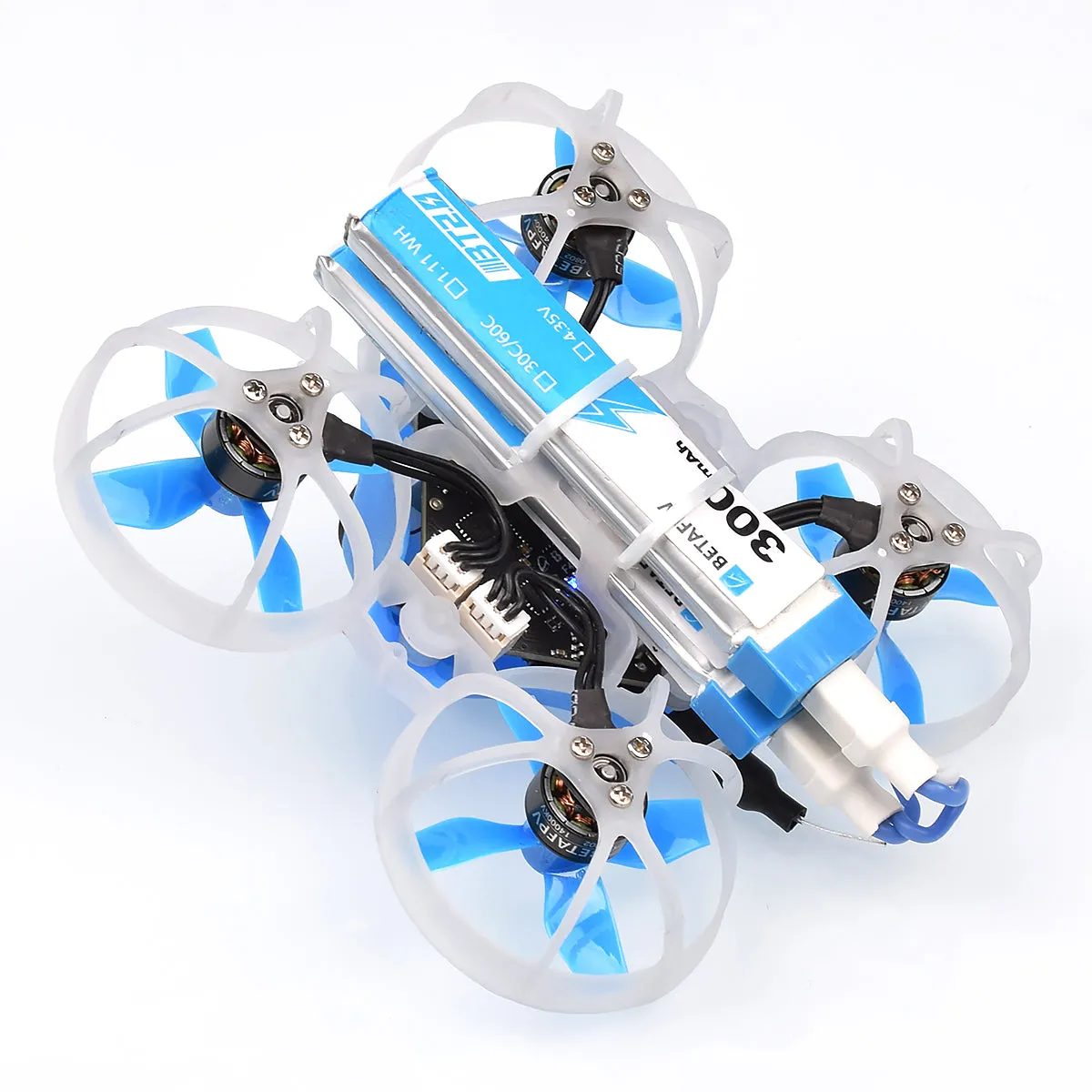

Used Meteor65 frame and adopted the stackable battery slot to cut down on the wind resistance.
With the high performance STM32F411 processor FC boards and betaflight_matekf411rx_4.0.0 (Development Version).

Specification

ItemL Beta65X
Weight: 26g (without battery)
FC:
Frame:
Motors:
Props: Gemfan 31mm 4-blades props 1.0mm shaft hole
Camera:
VTX: 25mW VTX
Canopy:
Receiver Option(Internal): Frsky FCC/ Frsky LBT/ Futaba/ PNP
Receiver Option(External): / / TBS Crossfire
Batteries: 2pcs

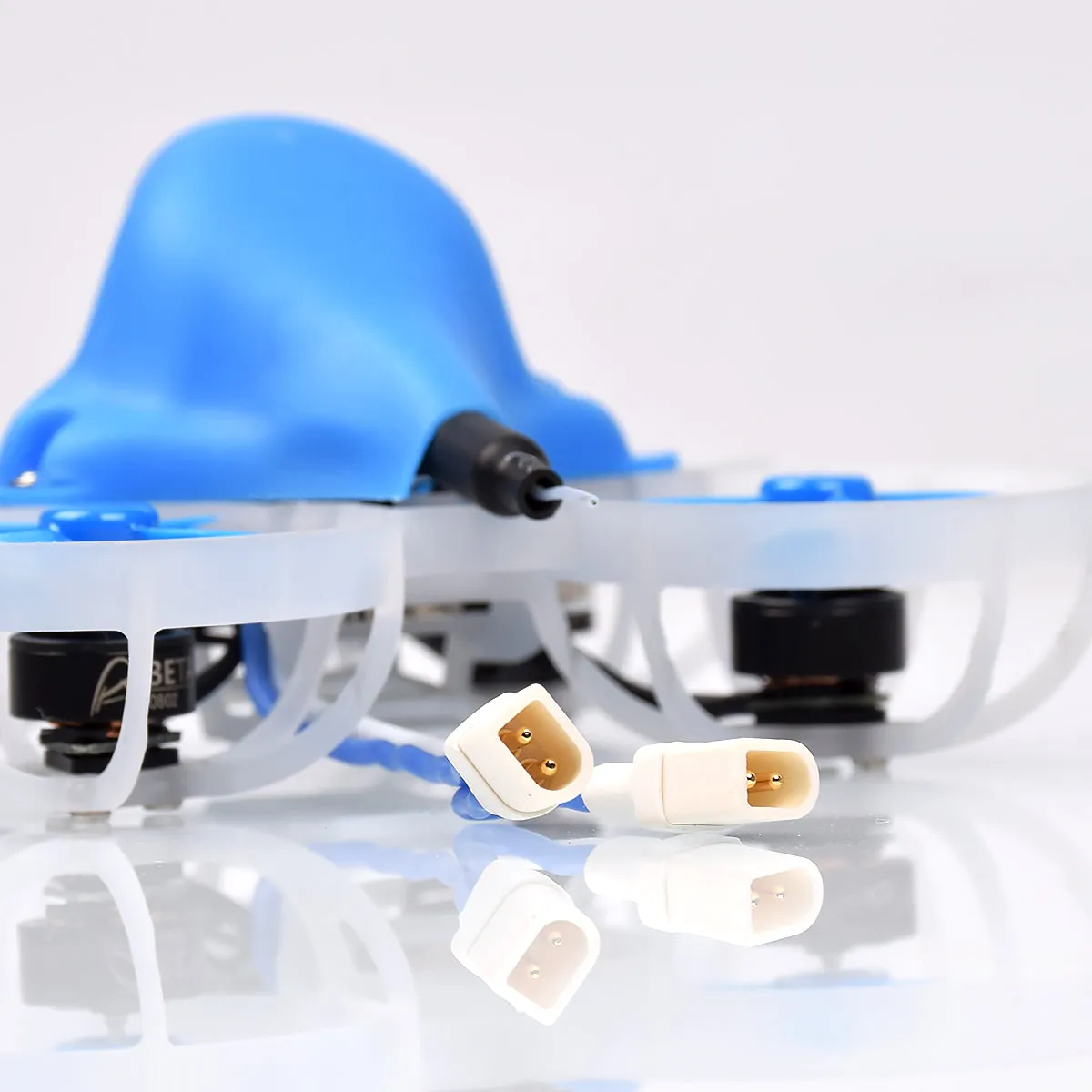

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector has decreased internal resistance of connector effectively allowing more current to be transferred, which means it supports 9A continuous current (15A burst). This means stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A. You can enjoy more flight time without disturb of low voltage warning due to reducing voltage sag. For more instruction, .

We know some of pilots might have a question about how to deal with the old PH2.0 1S battery. So we provide some accessories like BT2.0 connectors for those people who want to convert the PH2.0 connector to BT2.0 connector.

Flight Controller

This is suitable for a lighter 1-2S whoop drone perfectly, like Beta65X， or etc. It integrated with a Betaflight F411 processor FC, Betaflight OSD, SPI Frsky receiver and 1-2S 5A ESC. So the 1-2S drone could save much weight for a faster fly experience.

Camera & VTX

The is a rare FPV camera currently on the market, which adapted a 1/3'' CMOS sensor and a 2.1mm lens for 1200TVL resolution and excellent latency while minimizing the weight to 1.96g. Designed specifically for those weight-sensitive drones, such as Brushed & Brushless Whoop Quad.

The stock VTX on the 65X 2S drone is the M series 25mW VTX.

Note: the 25mW VTX is marked as M02 on the first batch. It will be changed to M01 V2 since the second batch). Compared with the original M01 VTX, the 5V pad change its position.

Motors

using ball bearing instead of brass bushings, and PCB connector. More durable and easier to repair once disconnection.

Meteor65 Frame

Meteor65 frame is the most popular and colorful 65mm frame in this winter.

We only need to add 0.3g 3D printed adapter and change it to a 2S 65mm frame. Still light enough and you could experience the aggressive power of 2S now.

Note: The STL file for this 2S battery adapter is public and you could print it by yourself.
