Product Details
＋
Qty: 2
Key Features
- Mini RF Motor, Clamp 2, Gear & Antenna
- Built-In, White-Coded RF Module
- Eliminates Need for Separate Receiver
- Adjusts Lens Focus, Iris, or Zoom
- Power & Run/Stop via CAM Connector
- 14 Radio Channels
- Daisy-Chains with Classic cforce Motors
- Daisy-Chains with LBUS Devices
- Compatible with WCU-4 Hand Unit
Overview

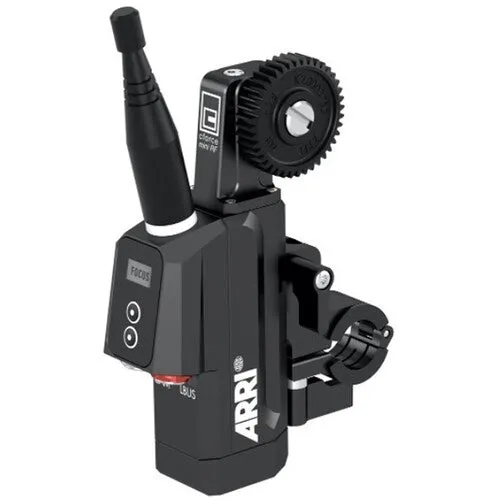

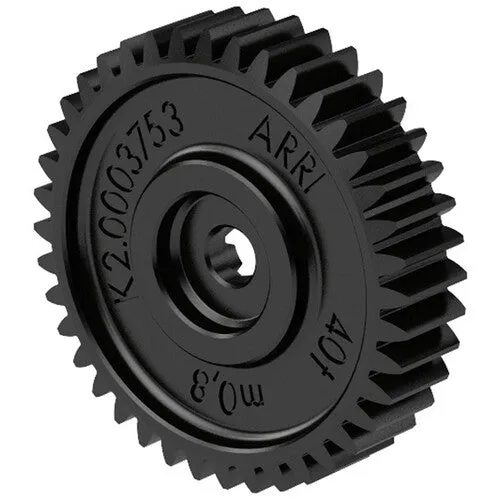

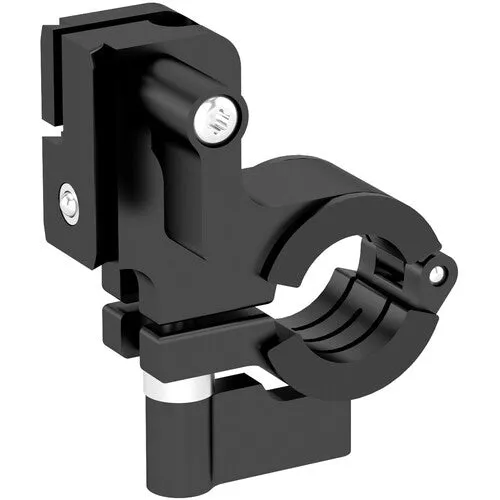

The ARRI cforce mini RF Basic Set 2 is a compact lens control motor set with an integrated white-coded RF radio module that eliminates the need for a separate receiver unit on your camera rig. This cforce mini Basic Set is comprised of one motor, an 08.MOD 40-tooth gear, a 2400 MHz antenna, and a rod clamp. The required LBUS cables must be obtained separately.
Suited for gimbal, stabilizer, handheld, and drone setups, the cforce mini RF motor can be daisy-chained with classic cforce motors and ARRI LBUS components. Power and run/stop control are supplied for ARRI and select third-party cameras through the motor's CAM connector.
Daisy-Chain up to 3 Motors
- Link up to three motors for a complete FIZ lens control system
- Pair with up to three hand units for setups where splitting FIZ control is preferred
- Daisy-chainable with classic cforce motors and ARRI LBUS components
White Radio Module
- Integrated white ARRI radio module
- Compatible with WCU-4 and SXU-1 hand units
- Compatible with legacy, white-coded ARRI hand units
- Supports OCU-1 override function
Lens Metadata
- Lens metadata support for focus mapping
- Abie to display data on a WCU-4 hand unit
Long Range
Supports up to 4921' wireless range
Run/Stop Function
Provides power and run/stop control for ARRI and select third-party cameras via a CAM connector
14 Radio Channels
- Compact FIZ motor with integrated 14-channel RF module
- Improved resistance to interference
